Eclectic Ø90. Non-adjustable Downlight. “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.

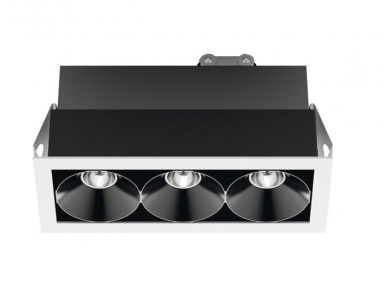

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 x 46 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

RANGE OF MOTION

HORIZONTAL -180-175° VERTICAL 0-30°

SIZE & WEIGHT

FRAME : DIA 163 / H : 177 / MOUNTING DEPTH : 172 / HOLE DIAMETER 150MM / WEIGHT 1.8KG
