LED modular system for recessed No Trim installation, including LED luminaires, aluminum installation profile and diffusers. Drivers included in lighting modules for 220-240V connection to mains or to other lighting modules.

Single emission submerged for outdoor application. The natural white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1640 lm, with a 117.1 lm/W nominal luminous efficacy. The device body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68

The Microline system is a custom design for a major retail lighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from min 185 mm to 1445 mm. Pitch or section length : 180mm.

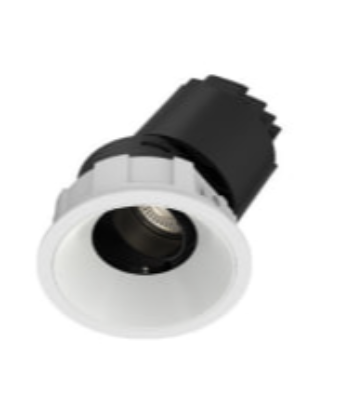

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; System Power 15W; measurements Ø110mm x 131mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 1150lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years
