The LED50 ONE Generation 2. Choice of 3 colour temperatures and 3 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Anodised die cast aluminium body white painted die cast dissipator. Passive dissipation system

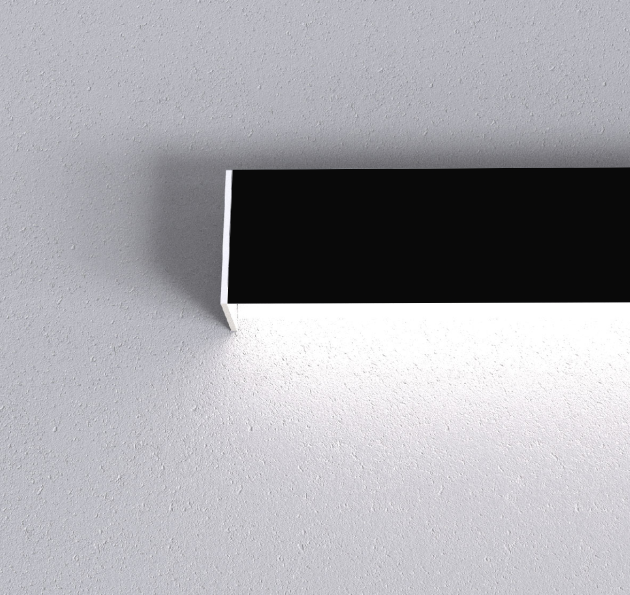

Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.
