Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 1729 lm, wattage: 23 W, delivered lumens 75 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Mini recessed adjustable downlight Ø48mm, cut-out Ø40mm. Various beam angles from 8, 15, 24, 36, 45 and 60°. Color finishing White available upon request. IP20

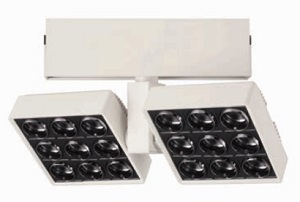

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

XOOLUX NANO is a minimalistic and flat luminaire designed primarily for grazing applications. The updated IP classification now stretch to IP67, meaning water resistance and suitable for outdoor use. Nano lens optics allow precise control of the light distribution while maximizing lumen output and minimalizing color over angle for crisp and homogeneous grazing. Different light distributions makes Xoolux Nano the goto product for grazing as well as delicate flooding applications. Further improving flexibility is achieved through the use of mounting clips, enabling tilt angles every 5° increments from 0° to 45°.
