RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
DAT-DRX5.0375

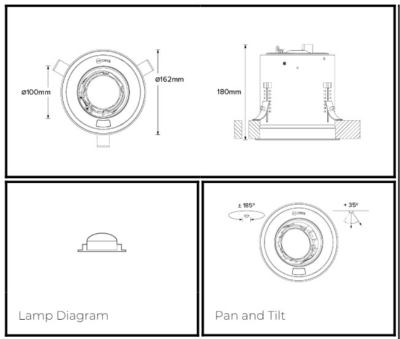

DRX5 3000K LED (17W for light source) standard trim recessed luminaire with 34° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 100-277V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 185° movement through the pan axis and +35 through the tilt axis, at a resolution of less than 1° in either axis. Movement and dimming is controlled using RCL Control. Recording and recalling of scenes as standard.

Specification
Power 17W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1570LM
Finishing WHITE
IP Rating IP20
Color Rendering CRI 90+
Driver 1-10V DRIVER
See More
SPARK
TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.
SPARK
WALL LIGHT
INDOOR LIGHTING

Indoor surface mount wall light made of aluminium casing with anodized black + gold finish. Various color temperature from 2700K to 6000K upon request.

ELR
RECESSED DOWNLIGHT
OUTDOOR LIGHTING


LINEALIGHT
FLOODLIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 2 arrayled LEDs .The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66, IK08.
