Single emission wall lights for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 1 array leds. Luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. IP68, IK10

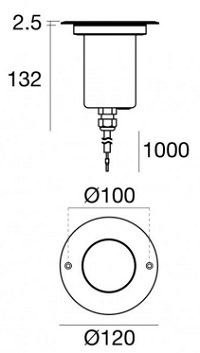

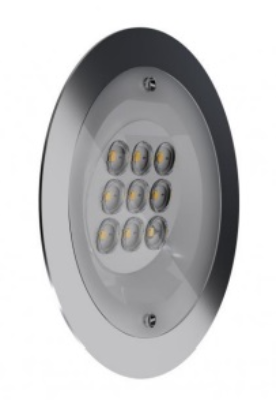

Single emission submerged for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 9 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK10.

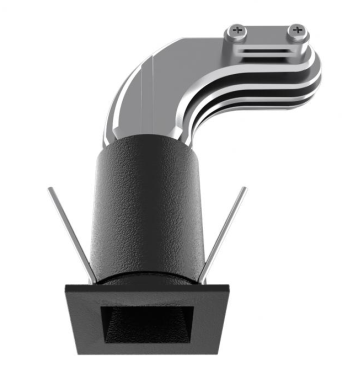

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

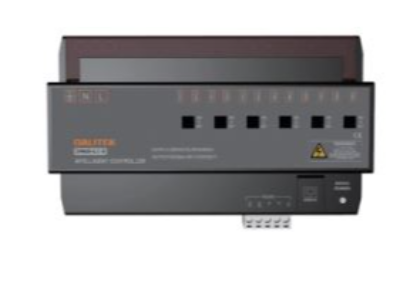

The module realizes the opening and closing control ofsixcircuits by controlling six20A single pole single throw (SPST) relays, and various logic timing control can berealized through configuration. The module has an internal temperature sensor to monitor the operating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipmentthrough RS485 bus.
