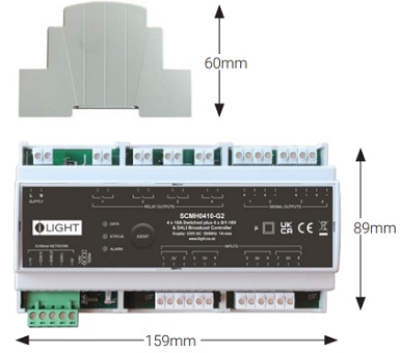

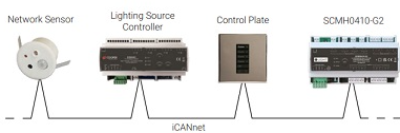

The SCMH0410-G2 is an indispensable addition to our family of DIN rail source controllers. Bringing together the best of our compact switching and DALI, 0/1-10V control products, the result is a compact yet powerful controller that supports innumerable applications, both in networked systems and as a standalone room controller. Each of the four volt free contacts can be switched independently or in tandem with the signal lines, switching up to 10A of load, they can just as easily be employed to control ancillary items such as local HVAC, air handling units or other non-lighting devices. All switched outputs are phase independent and support AC, DC or volt free contact switching applications. With an integral power supply, SCMH0410-G2 has sufficient capacity to support 50 DALI ballasts or 30 0/1-10V ballasts per signal output. Eight inputs provide the opportunity to connect a wide range of peripheral volt free contact devices, such as simple momentary action switches, door/window contacts, alarm inputs or presence/absence detectors. With iLight network connectivity, the SCMH0410-G2 can be linked with a virtually limitless number of other iLight products to build a system of any size.
| Power | NA |
| Color Temperature | NA |
| Light Source Type | NA |
| Lumen Output | NA |
| Finishing | GREY |
| IP Rating | IP20 |
| Color Rendering | NA |
| Driver | DIMMING |
