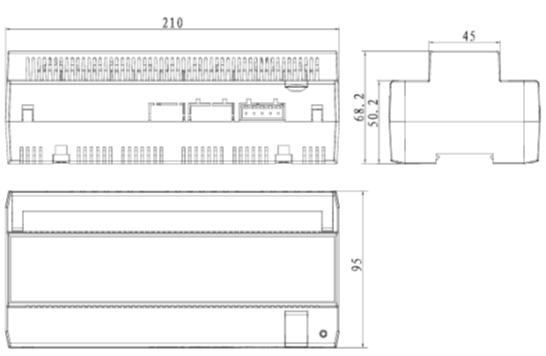

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation
| Power | NA |
| Color Temperature | NA |
| Light Source Type | NA |
| Lumen Output | NA |
| Finishing | GREY |
| IP Rating | IP20 |
| Color Rendering | NA |
| Driver | 0-10V DRIVER |
