Pivot 1.7 code: CP17020FKA-1/projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap)

Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 657 lm (3000K, 7W, CRI 80)/Delivered lumen output: 463 lm (3000K, 34°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: 54°: optical system consisting of a deep-set, high-efficiency TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø40x75 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015

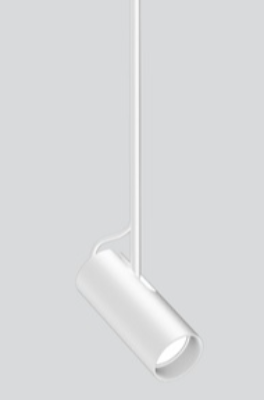

Decorative suspended luminaire in aluminium; surface white powder coated; height adjustable U-profile pendant rod suspension (white) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (white) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 44° beam; degree of protection IP20; PC2 220-240V; ceiling recessed canopy with trim traffic white; suitable for ceiling thickness of 2-25 mm; incl. converter, non dimmable; external converter for ceiling insertion; light source not replaceable; control gear replaceable by an authorized professional.

Recessed wall luminaire with asymmetrical flat beam light distribution, for flush or surface mounting installation. For the wide beam and uniform illumination of surfaces and paths.Luminaire made of aluminium alloy, aluminium and stainless steel. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06. DIMENSION: (W)250x(H)250x(D)105mm.

WetPlane 40 is an IP-65 rated, linear luminaire with direct distribution that may be suspended, surface or wall mounted. The wall-mount option features an adjustable bracket that can be rotated up to 180˚ to angle the trajectory of the light output.
