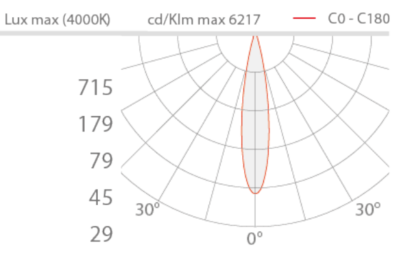

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 80, 3 SCDM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 42°, luminous flux: 1551 lm, wattage: 19 W, delivered lumens 82 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 3.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

IP66, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two-sided light output versions for 360° symmetric distribution. One-sided light output versions with 'rearward glow' feature. Ideal for pathway lighting applications. Luminaire spacing up to 5-8 m.

Dotless and three-sided light emission from the front side and the side surfaces expands design possibilities in terms of exhibiting the light source. The smart form allows a unique line lighting to materialize for fixtures, handrails and backs of mirrors etc.

The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
