RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
DRX7-TL-TW2-20-ZO-230-RCLC-WH

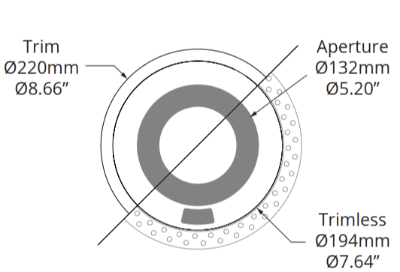

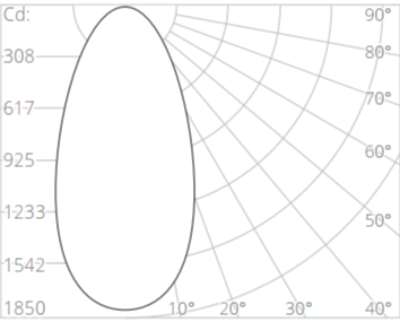

DR7 TUNABLE WHITE LED (25W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

Specification
Power 26W
Color Temperature TUNABLE WHITE
Light Source Type LED
Lumen Output 1719LM
Finishing WHITE
IP Rating IP20
Color Rendering >90
Driver DMX 512
See More
SPARK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Innovative design, no need to disassemble the product 15° free adjustment from the cover, improve the lighting design effect, with the safety self-locking function, more stable dimming. The ingress protection degree is IP67, IK10.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FLOS
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Eclectic Ø90 Dim To Warm. Adjustable Downlight (40º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be orderedseparately). Recessed position ofthe LED: 41º cut-off angle. IP20 water tightness (for IP54, pleaseask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.The ingress protection degree is IP20.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions
