Luminaire for indoor and outdoor architectural linear lighting – with RGBW (PIXEL) LED (4000K - CRI 80 white LEDs) – on a 24Vdc flexible white circuit, length L=1004mm. The LED strip can be controlled via a SPI protocol with addressing every 83.3mm (pixel step). The LED circuit is completely IP68 encapsulated with a high-performance polymer sheath that has a white (outside) and milky finish.

Single emission lines for outdoor application. The warm white LED light source is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Low profile recessed channel, height 14 mm; suitable for installation in 12.5mm ceilings, with trim; suitable for wall or ceiling mounting; surface white powder coated; easy mountng without need to cut the substructure; fallsafe light inset made of extruded aluminium profile, can be inserted in the canal without tools by magnetic holders; with asymmetric light distribution; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection from below IP40 (from above IP20); PC2 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. external converter for ceiling insertion; DALI-2 control; light source not replaceable; control gear replaceable by an authorized professional;

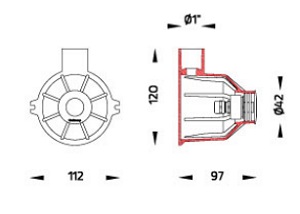

Recessed mini downlight made of aluminium housing. Cut-out size Ø35mm, suitable for display showcase, shelf and cabinet application.
