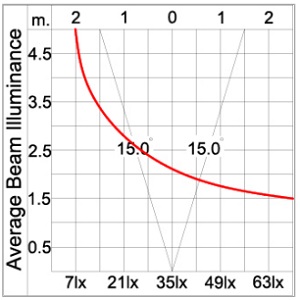

Single emission ceiling lights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of PC and features a black finish The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP20; the total weight is of 0.700 kg. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Installation Recessed installation in suspended ceilings. Unventilated or ventilated ceilings.

For installation in suspended ceilings with visible T-bars, VTB (24 mm) or one-piece suspended

ceilings.

Connection For permanent connection with 230 V; built-in LED ballast in luminaire. Single

and Start luminaires in systems are equipped with 2.5 m connection cable 5 x 0.75 mm².

System units are equipped with a change-over cable (5 x 1.5 mm²) and a quick-connector

between the luminaire units. Use Con

Round or Square mounting trim in cast aluminium with spring for installation mounting on a ceiling thickness of 1-25mm. Luminaire body in cast alluminum. Easy relamping tool-free via removable lamp front ring. Available in two different sizes. Adjustable version tiltable vertically 0-40° and rotatable horizontally 350°.
