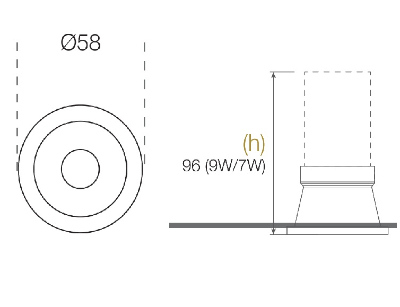

The Eyeconic Mini Trim Fixed is a recessed, fixed downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Round recessed luminaire with contact frame. Fixed Super Comfort version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. The main body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - wideflood optic. Structure with die-cast aluminium external contact frame with a single white finish.

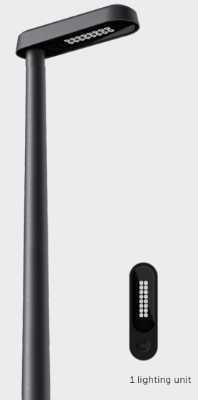

Housing accommodates 1 LED lighting unit (LED Board: 16 LED)Various light distributions for area, street and walkway lightingCurrent feed: 200 mA–650 mA, depending on ambient temperature Max. Luminous flux [lm] 3,500

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request . Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Colour temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other colour rendering indexes available upon request. IP66

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK09.
