Fixed round luminaire designed to use a LED lamp with C.O.B. technology. Version with rim for surface-mounting. Optic with super comfort reflector vacuum-metallised with aluminium vapours and an anti-scratch protective layer. Die-cast aluminium body and passive dissipation system. Product complete with LED lamp in neutral white colour tone (4,000K).

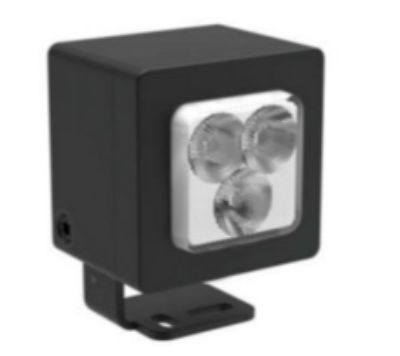

Unique mini square-shape structure design, Aluminum alloy housing, Multiple light distribution options, Zero luminous depreciation at 3000hrs, long lifespan with low power consumption, 70-80 energy-saving, and environmental friendly, Various installation bracket optical accessory options, Easy for installation, replacement and maintenance, Compact design for versatile use in the outdoor applications, such as ancient building, temple, small town, etc.

DIMENSION : 59.4*59*86.5MM

wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 3W; Power supply: 24Vdc; Lumen output at source: 147 lm (3000K, CRI >90); Delivered lumen output: 128 lm (3000K, 22°, CRI >90); 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 22°: optical system consisting of a high-efficiency TIR lens

Direct light luminaire, designed to use Warm White monochrome LED lamps, and a Wall Grazing optic. Ground-, wall- and ceilingrecessed. Consists of a body and outer casing for installation, to be ordered separately. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals. The painting process includes a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. Lower PPS (polyphenylene sulfide) box for control gear. The top of the optical assembly is closed by a 8mm thick transparent glass screen, fixed with silicone. Complete with multi-LED plate in Warm White with 24V dc electronic circuit (ballast to be ordered separately). 24V intelligent driver that ensures light flow emission is constant even when the input voltage varies (from 30V dc to 16V dc). Fitted with a PMMA diffusing filter and optics with plastic (methacrylate) lens for Wall Grazing lighting.
