IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Single emission ceiling lights for indoor application. The warm white LED light source is composed of 3 powerled LEDs. The device body is made of PC and features a black finish The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP20; the total weight is of 0.350 kg. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

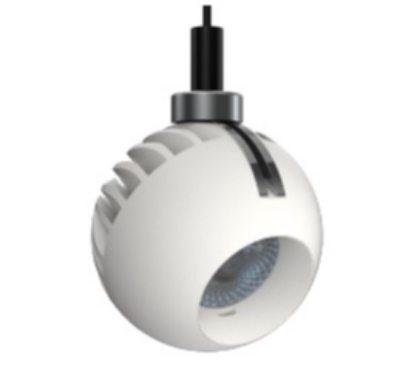

ORBA INTERIOR PENDANT

Utilising our bespoke low voltage cable, drop tube versions can be made of the Screw, Puck, Wiring Housing, Spring, BESA

and Track options. The length of the cable can be supplied in bespoke lengths up to 2m.

Ginko 2.4 projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap). Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 608 lm (3000K, 7W, CRI 90)/Delivered lumen output: 113 lm (3000K, 36°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: optical range 9°—36°: optical system consisting of a plano-convex lens combined with a high-quality technical filter, adjustable with a mechanical focusing system for extreme flexibility of choice of light emission.CRI Colour Rendering Index:  80, >90. TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø54X83 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015.
