SPARK
SURFACE LINEAR LIGHT
INDOOR LIGHTING

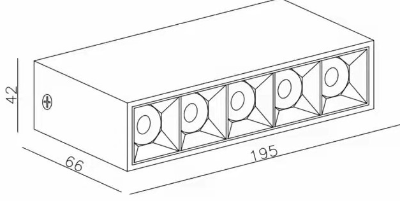

SPK05H20W-36D

Surface mount linear downlight, luminaire body made of aluminium housing with white powder coated trim finish with chrome black reflector.

Specification
Power 20W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1840LM
Finishing WHITE
IP Rating IP20
Color Rendering CRI90
Driver ON/OFF DRIVER
See More
COLORS
LED STRIP
OUTDOOR LIGHTING

140 LEDs/m with ultra-slim thickness of 1.2mm,matching profiles better. Self-encapsulated design offers 4 optional 2700-6000K white lights, CRI 90. With life span over 36000H. Ta: -25~40°C;Tc:75°C(max).

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable oval-hole downlight made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
