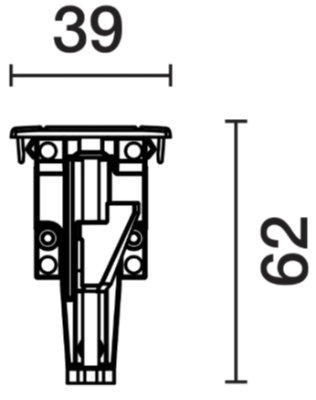

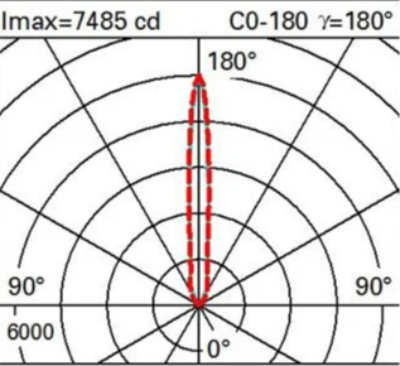

Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.340 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 57 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable; incl. feed (black); lighting profile (end cover pre-assembled) available in advance for installation, microprismatic PMMA diffuser.

Wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 795 lm; Delivered lumen output: 501 lm (52°, 3000K); 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2700K; Optics: 52°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy

The dAxis-7 is an expertly engineered directional luminaire with a 45º or 60º shield to illuminate a variety of spaces in 3, 6 or 9 LED. A zoning/dimming version is also available for use with ZDClink® Controllers.
