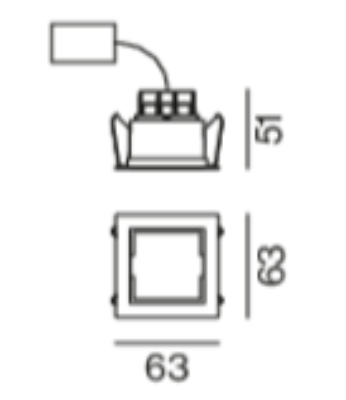

The luminaire housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. The mounting fixture is designed simply for ease of installation. The luminaire ceiling-recessed downlight that highlight the desired subject or place and provide optimum illumination by being nondescript.9

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating.

Single emission projectors for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1320 lm, with a 138.9 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 1 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 9.5 W. The power supply cable is included and features a 1 m length.The device features protection class III and can be wall lights, ceiling or floor-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

The dAxis-4 is an expertly engineered directional luminaire designed to illuminate a variety of spaces in 1LED. A zoning/dimming version is also available for use with ZDClink® systems using Luxor® Technology.
