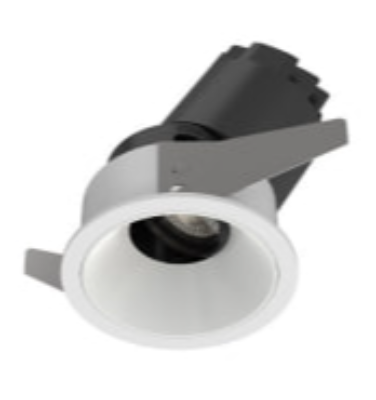

Round recessed downlight made of die-cast aluminium with white powder-coating finish

(RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurements Ø78mm x

97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm;

luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with

a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of

50000h L80B10 min. 80% of the luminous flux with energy e

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two wallwasher floor light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Robust in ground grazer made of V4A stainless steel available in standard lengths and 10° and 30° beam optic. Oceanos has an environmental resistance of IP67. This is made to the unique polyurethane encapsulation. Different optics enable adaptability to different projects. The 10° optic suit well for wall grazing, as the 30° and opal are suitable for accent lighting. Oceanos has an IK10 classification hence is very robust. The ability to withstand a pressure of 30kN is equivalent to being traversed by a vehicle according to DINEN605982.
