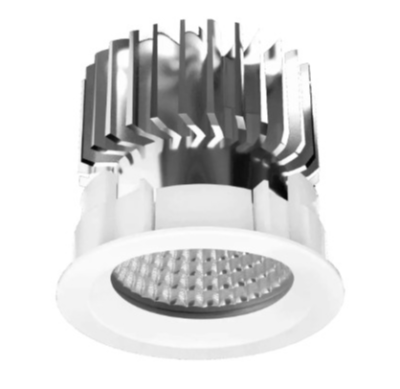

Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1487 lm, with a 135.2 lm/W nominal luminous efficacy.

The device body is made of uv resistant polycarbonate and features a white finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 11 W. The power supply cable is included and features a 0.15 m length.

The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Surface mounted rectangular multi-downlight made of luminaire housing and can be attached to mounting plate without tools by interlock, converter integrated into luminaire housing. Surface black powder coated equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic. High quality reflector with micro-faceted, aluminum-vaporised surface. Protection IP20

Direct light luminaire, designed to use Warm White monochrome LED lamps, 48V dc with DALI control, and a flood optic with nonslip glass. Ground-, wall- and ceiling-recessed. Consists of a body, a lower box for the Dali driver and an outer casing for installation to be ordered separately. Extruded aluminium body and box, with die-cast aluminium end caps complete with silicone seals. IP67,IK09.

The Nano Eclipse Mini Trim Fixed is a recessed downlight, with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
