Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.

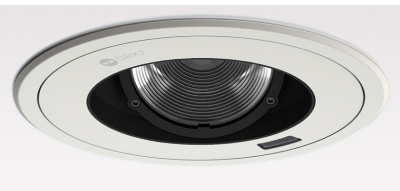

DR7 TUNABLE WHITE LED (34W for light source) standard trim recessed luminaire with 17° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

Tracklight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 13W, measurement Ø55mm; tracklights length 150mm; track adapters length 255mm; luminaire's weight is approximately 500g; rotation 355° and pivot max. 90°; CCT 4000K with an LED Output of 1400lm; with DALI Dim Driver; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; adjustable beam characteristic with 35°-60° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); Compatible with GLOBAL/ POWERGEAR 3-Circuit Track System.

Aluminium mounting channels
