MEYER
INGROUND UPLIGHT
OUTDOOR LIGHTING
8 663 016 019

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 85, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 9°, luminous flux: 1628 lm, wattage: 19 W, delivered lumens 86 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 3.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification
Power 19W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1628LM
Finishing DIE-CAST ALUMINUM
IP Rating IP68
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
UNILAMP
SPOTLIGHT
OUTDOOR LIGHTING
Sonic is a huge family of spotlight/ floodlight with LED light source. The family offers ground/ wall mount fixing, pole clamp and wall clamp array, indirect pole and wall light. The wide ranges of accessories like glare shield unit, tree strap, earth spike and anchorage bolt kit makes Sonic customizable for most application. Available in three sizes with a choice of five colors. Sonic is fiited with COB LED with hight CRI in 3000K or 4000K color temperature with 3 SDCM. The front glass cover is flush to the luminaire housing thus dust and water are not accumulated. High specular reflector are used in this luminaire family to achieve an outstanding light output ratio. Aiming can be done through graduated scale by tool. For ease if installation and improved thermal performance the control gear compartment is housed separately to the light engine. Sonic is an ideal choice to accentuate sculptures, walls, building facades, bushed and trees.
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

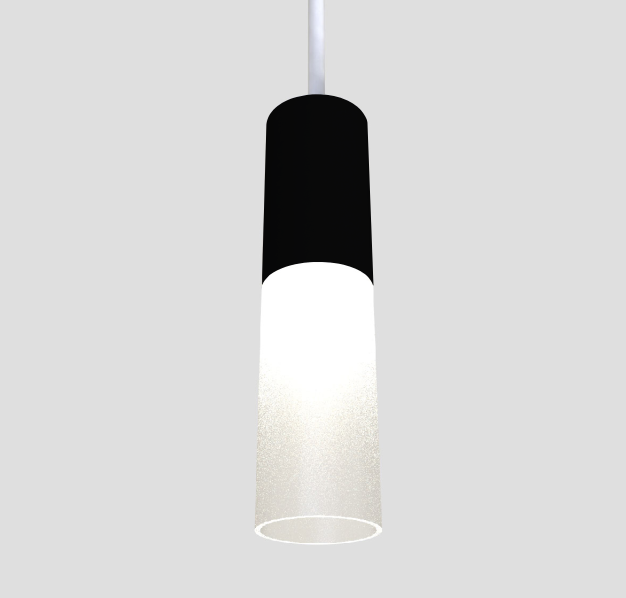

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
