XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-1L423DBB11

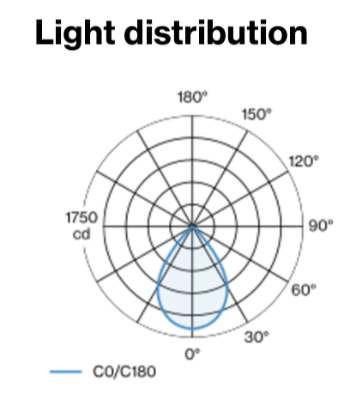

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface jet black powder coated; equipped with four wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector black; passive cooling of the LEDs

Specification
Power 15.3W
Color Temperature 3500K
Light Source Type LED
Lumen Output 1880
Finishing BLACK
IP Rating IP20
Color Rendering CRI 90
Driver DALI DRIVER
See More
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 180 topled LEDs. The device body is made of uv resistant polycarbonate and features a black finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.90 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.25 m length. The device features protection class III and can be wall lights or floormounted. Compliant with the EN 60598-1 standard and its specific provisions.
WE-EF
PROJECTOR LIGHT
OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.

FLOS
WALL LIGHT
OUTDOOR LIGHTING
Semi recessed signalling lamp for indoor use on ceiling/wall. Power supply not included. 1000 mm power cable included. IP65.
ELR
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Compatible with 100CLO, 100CLE and 100PLE series LED modules.Colour temperature options 2700K, 3000K, 4000K, 5000K, WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with LM80 tested LED chip packages. Beam pattern options ClassicPRO 12, 20, 35, 60 Luminous flux 1063lm to 3000lm depending on LED module.Supplied with non-dimmable or phase0-10VDALI dimmable LED driver. Automated Thermal Protection System. ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional colour and light effect filters, and honeycomb anti-glare louvre, For the latest specifications please refer to the website. The ingress protection degree is IP40.
