MEYER

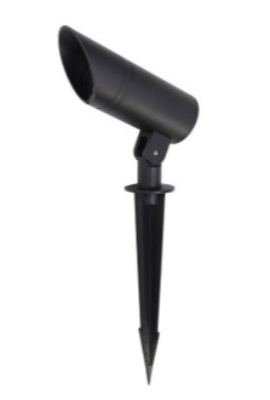

FLOODLIGHT
OUTDOOR LIGHTING
8 262 046 049

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 549 lm, wattage: 7 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification
Power 6.8W
Color Temperature 3000K
Light Source Type LED
Lumen Output 549LM
Finishing DIE-CAST ALUMINUM
IP Rating IP65
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
FLOS
MAGNETIC TRACKLIGHT
INDOOR LIGHTING

LED lighting module, with 4 spotlights and low glare, to be installed in the The Running Magnet system. DC/DC, built-in electronic current converter.

XAL
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING


XAL
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING
Square semi-recessed spotlight made of aluminium; surface black/gold (housing/light inset); luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows
XAL
UP/DOWN WALL LIGHT
INDOOR LIGHTING
Cylindrical wall surface mounted luminaire made of aluminium housing and available in 2 sizes. Symmetric direct or direct/indirect light distribution. Homogeneous wall or ceiling illumination through uniform light distribution; precise radiation characteristic due to high quality lens system. COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering. DIMENSION : L84MM * W68MM * H166MM
