MEYER
POLE LIGHT
OUTDOOR LIGHTING
8 264 246 059

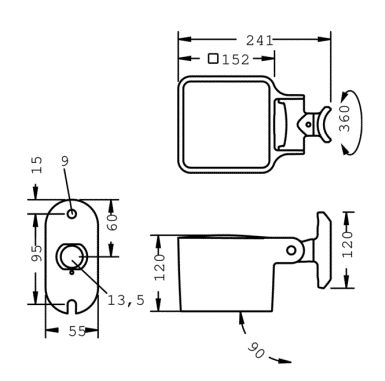

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), DIMENSIONS: (L×H×W): 152 × 120 × 152 mm.

Specification
Power 36.8W
Color Temperature 3000K
Light Source Type LED
Lumen Output 2528LM
Finishing DIE-CAST ALUMINUM
IP Rating IP65
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
LINEALIGHT
SPOTLIGHT
OUTDOOR LIGHTING
Single emission projectors for outdoor application. The natural white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66, IK05.
LINEALIGHT
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Single emission recessed downlights, recessed downlights, uplights, lines or lines for outdoor application. The natural white LED light source with a spot light distribution is composed of 5 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 2177 lm, with a 134.4 lm/W nominal luminous efficacy.

SPARK
RECESSED SPOTLIGHT
INDOOR LIGHTING

Recessed adjustable spotlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 36 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
