MEYER
WALL LIGHT
OUTDOOR LIGHTING
8 308 146 019

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 81 × 67 mm, weight 0.47 kg The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification
Power 5W
Color Temperature 3000K
Light Source Type LED
Lumen Output 326LM
Finishing DIE-CAST ALUMINUM
IP Rating IP65
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
FLOS
TRACKLIGHT
INDOOR LIGHTING
LED lighting module for installation in the My Circuit system. Optical with double focal lens technology, low glare and high visual comfort. Adjustable by tilting and turning. In the downlight position, the track connector arm is perfectly flush with the product. Casambi version for wireless control.
UFO LIGHTING
FIBRE OPTICS
INDOOR LIGHTING

The Micro LED 100PT or 100PC both models feature bright white light output and are fitted with a decorative wheel to provide lighting effects. The Micro LED 100PT features a twinkle wheel which constantly rotates to provide

a shimmering starry sky effect. The Micro LED 100PC has an inbuilt color wheel which rotates slowly to give a gentle colored effect to the star points. No user intervention is required with either of these units - just plug in and

enjoy the lighting effects as you relax.

PHOS
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
The Nano Eclipse Mini Trim is a recessed, tilt behind, adjustable downlight with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 22° Tilt, 360° Rotation.
SPARK

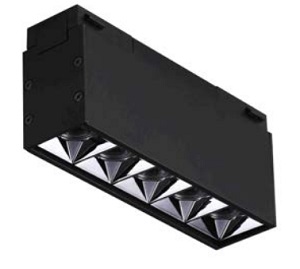

RECESSED MAGNETIC TRACK LINEAR
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.
