MEYER
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING
8 320 046 019

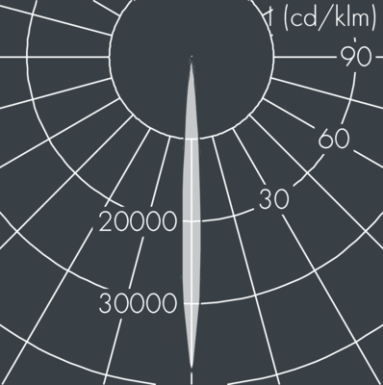

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, with grub screw, ceiling mount: 2 drilled holes Ø 4 mm, spacing 86 mm, cable gland: Ø 4‑11 mm UP, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 7°, luminous flux: 782 lm, wattage: 13 W, delivered lumens 63 lm/W, protection type IP65, protection class I, impact resistance IK08, dimensions: Ø 149 mm, width 121 mm, weight 2 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification
Power 12.5W
Color Temperature 3000K
Light Source Type LED
Lumen Output 782LM
Finishing DIE-CAST ALUMINUM
IP Rating IP65
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
FLOS
TRACKLIGHT
INDOOR LIGHTING
LED lighting module for installation in the My Circuit system. Optical with double focal lens technology, low glare and high visual comfort. Adjustable by tilting and turning. In the downlight position, the track connector arm is perfectly flush with the product. Casambi version for wireless control. Casambi, maximum distance between fixtures: 12m.
IGUZZINI
FLOODLIGHT
OUTDOOR LIGHTING

Outdoor Floodlight designed use Neutral White LED lamps with a Wide Flood optic. Can be installed at ground level or on walls (using screw anchors) and on pole mounting systems. Luminaire body and front frame are made of die cast aluminium alloy painted with a smooth black finish. IP66, IK07.

COLORS
LED NEON TUBE
OUTDOOR LIGHTING

Silicone Neon Strip adopts bi-color/ tri-color co-extrusion process, featured baby-skin feel in touch and uniform & natural light in function. It shows great resistance to saline solutions, acid & alkali, corrosive gases, fire and UV. The series include Outline Neon for delicate micro-scene outlining, Magic Neon for innovative styling and Architecture Neon for facade and under-water lighting. The ingress protection degree is IP65,IK08.

ENDO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed ceiling downlight come in trim and trimless version, aluminium housing.
