Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized
coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate

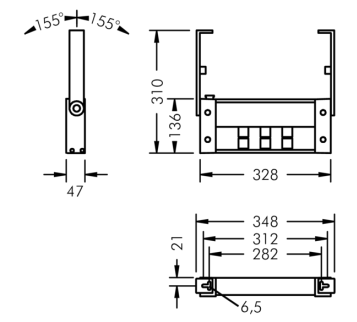

cover , silicon gasket, with 4 stainless steel screws, wall arm: 2 drilled holes Ø 6,5 mm, spacing 282 mm, tilt range: 310°,

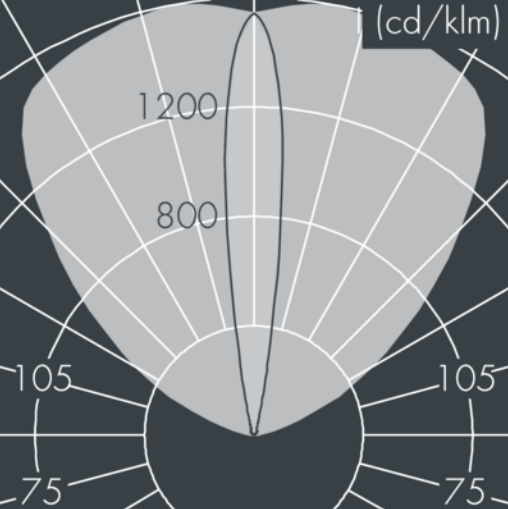

cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 1175 lm, wattage: 15 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,04 m², dimensions (L×H×W): 328 × 47 × 135 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral,
db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high
ambient temperature.
LED Lens Strip small in size and light in weight. SMD2835 in 42LEDs/M with slim thickness of 1.2mm. Various beam angle 30°, 45° and 20°x45°. Color temperature avilable from 2700K to 6000K. Cutting length 166.7mm. DC24V DIMENSION : L1000*W22*H11mm
Recessed indoor downlight luminaire available fix and adjustable version, trim and non-trim and 2/4/8/12 spots module. Surface and wallwasher version available in 4 spots module. Various color finishes upon request.
Bollard with single sided light output and asymmetrical flat beam light distribution. The light is directed downwards and is shielded above the horizontal. For broad spread and uniform illumination of surfaces and paths. Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel, IP65,IK04. DIMENSION: (WIDTH)160x(HEIGHT)800x(DEPTH)110mm.
Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.
