The Microline system is a custom design for a major retaillighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from 55 mm to 2035 mmand section length : 45 mm.

surface mounted (spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 1890 lm (3000K, 25W, CRI 90); Delivered lumen output: 1575 lm (3000K, 13°,25W, CRI 90); 1 COB LED, 2-step MacAdam, 55 000h L70 B10 (Ta 25°C); LED colour: 3000K; Optics: 29°; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe

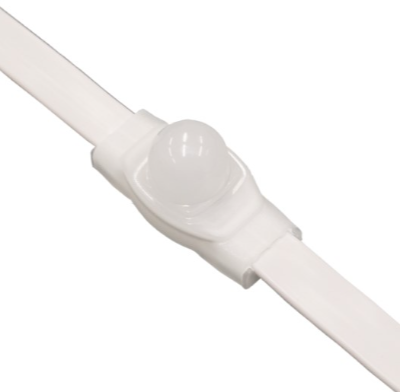

1 Warm White LED (2700K) and 1 Cold White LED (6500K) per dot Max. 80 per string Max. 640 per system
