Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

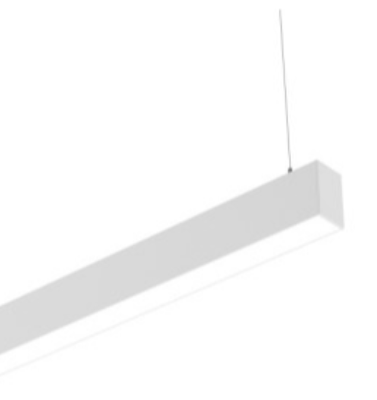

Pendant LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish – textured matt (RAL 9016); luminaire incl. white canopy (110mm x 65mm x 36mm) with transparent feeder cable as well as cable hangers and quickrelease clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 35W – High Power; Dimensions of the profile channel (LxWxH): 1411mm x 50mm x 80.5mm; luminaire's weight is approximately 4200g; CCT 3000K with a System Luminous Flux of 3471lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

Direct light luminaire, designed to use Warm White monochrome LED lamps, 48V dc with DALI control, and a flood optic with nonslip glass. Ground-, wall- and ceiling-recessed. Consists of a body, a lower box for the Dali driver and an outer casing for installation to be ordered separately. Extruded aluminium body and box, with die-cast aluminium end caps complete with silicone seals. IP67,IK09.

Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
