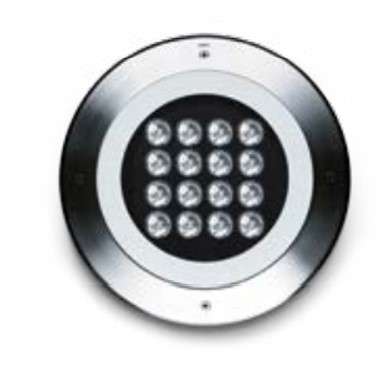

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

Lightplane 3.5 is a compact and streamlined luminaire with a channel that provides direct illumination. The luminaire is available with several LED lamping options including multiple outputs and CCTs, tunable white and colourchanging RGB+White. Driver in integral.

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 27 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 7 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 99760 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

FUSION FF3

FF3-9302407F-BB

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 7W; measurement 98mm x 45mm; ceiling cutout of 90mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 180g; CCT 3000K with an LED Output of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)
