Housing: cast aluminium, with connec- tion cable L 850mm. 0°-40° tilt, 360° rotation. Lockable angles of tilt and rotation.

rackLynx octo is an 8-port ethernet gateway, capable of converting up to 8 Universes of Art-Net/sACN to DMX512/RDM. It is designed to sit in a 1U slot in a 19″ rack, with the added bonus that is is only 50mm deep. The slim profile of the metal case means that the product is great for space-saving on wall mounted overhead racks. Alternatively, in touring applications, doubled-sided racks can be packed with two products per 1U slot, facing front and back.

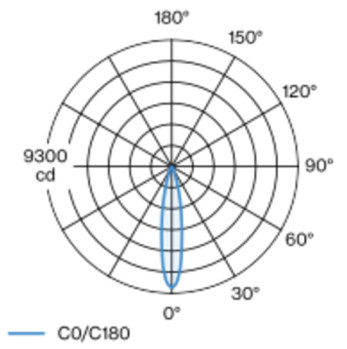

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 37°, luminous flux: 330 lm, wattage: 5 W, delivered lumens 61 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 66 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
