iGuzzini Reflex Q986 is a Round adjustable luminaire designed to use an LED lamp with C.O.B.technology in a warm white colour tone 2700K (CRI 90). Version with rim for surface-mounting. Painted, die-cast aluminium body. Lower reflector vacuum-metallised with aluminium vapours with an anti-scratch protective layer.

This luminaire supports monochromatic, RGBW, Tunable White, and Tunable Warm LEDs for ceiling, wall, or surface installation. Made of extruded aluminium with die-cast zamak end caps and UV-resistant liquid acrylic paint, it features a sealed 5mm glass screen. Available optics include Wall Grazing, Microlouvre, Accent, Flood, and No-Dot. Offered in 2200K to 4000K, with RGBW and tunable versions. Rated IP66 and IK06, with A2 stainless steel screws. Power supply and driver not included.

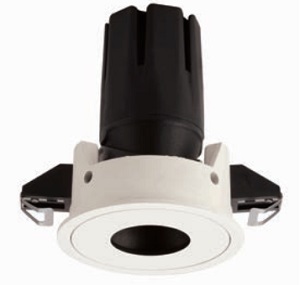

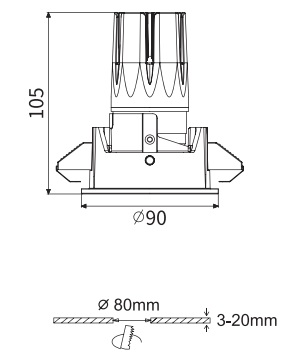

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.090 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Connection

The luminaire is equipped with an access hole for cabling on the top. Knock-out at start luminaires short end for surface mounted mains cable. The luminaire unit is equipped with a through-wiring cable (5x2.5 mm²) and a snap-in connection in each end-cap.

Design

Luminaire body in natural anodised extruded aluminium finish.
