XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351C0B21 090-7L30100

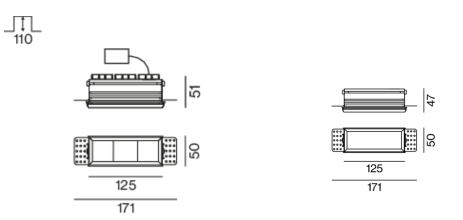

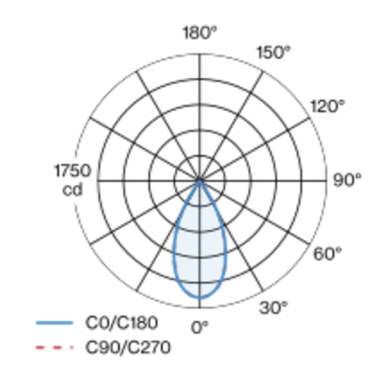

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
Power 11.2W
Color Temperature 3000K
Light Source Type LED
Lumen Output 987LM
Finishing BLACK
IP Rating IP20
Color Rendering CRI >90
Driver ON/OFF DRIVER
See More
LED LINEAR
LED STRIP
OUTDOOR LIGHTING

Pixelized light line produced to the desired length with IP67 connectors on both ends for fast indirect facade lighting installations. Suitable with 10 different optics. Delivered ready to use with an IP67 connector on both ends and can be easily installed via clips or mounting profiles. The aluminium profile is used for thermal management, so that even powerful LED strips with up to 25W/M. The polyurethane encapsulation ensures an IP67 rating and high resistance against salt water and UV radiation by a clear polyurethane encapsulation.

SPARK
ZOOMABLE TRACKLIGHT
INDOOR LIGHTING

Track Adjustable Zoomable Spotlight luminaire body made of aluminium housing with white powder coated finish. Zoomable beam from 10° - 60° degree. White finish available upon request.

TRAXON
LED DOT
OUTDOOR LIGHTING

Allegro Dot CW is the next generation of intelligent media dot family. It is an extra bright Cold White clear or diffused dot. The dots can provide advanced features and flexibility for lighting design and project execution. Customizable pitch containing up to 38 dots max in Dot M and 22 dots max in Dot L. IP66,67. DIMENSIONS: Ø68x60(L)x39(H)mm.

MEYER
POLE LIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
