XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L451E0021 090-7L4020B

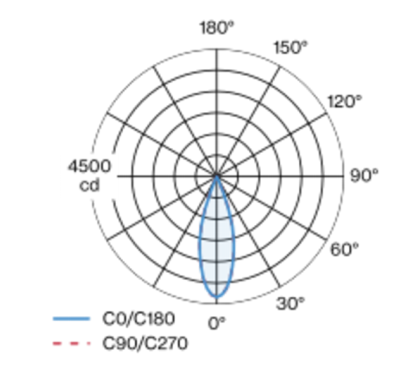

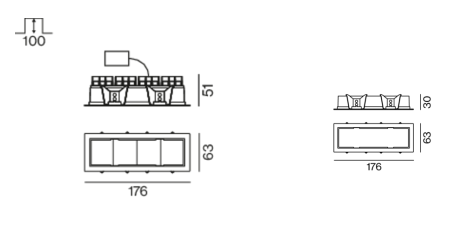

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
Power 13.9W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1180LM
Finishing BLACK
IP Rating IP20
Color Rendering CRI >90
Driver ON/OFF DRIVER
See More
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65,IK08.

BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire made of aluminium alloy and stainless steel. Antique glass 2 fixing holes ø 5.2 mm, 70 mm spacing, 1 cable entry for mains supply cable, up to ø 10.5 mm, max. 3 × 1.5@, Plug connection. Connecting terminal 2.5@ Earth conductor connection. Lampholder E 27, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.
