Pendant mounted luminaire with light body in extruded aluminium inclusive of integrated diamond faceted nodazzle louvre in thermoplastic. Light body measuring 45mm in width and 65mm in height. Supplied with ceiling canopy and pre-installed 1.5m electrical cable and with 2 x 1.5m pendant steel wires.

Luminaire made of aluminium alloy, aluminium and stainless steel Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.2 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. Impact strength IK04, Protection against mechanical impacts < 0.5 joule, r – Safety mark, c – Conformity mark.

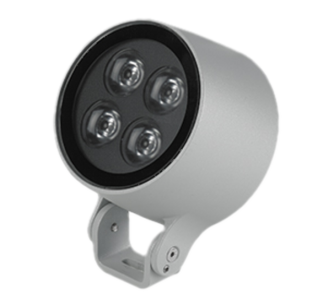

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1088 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68;

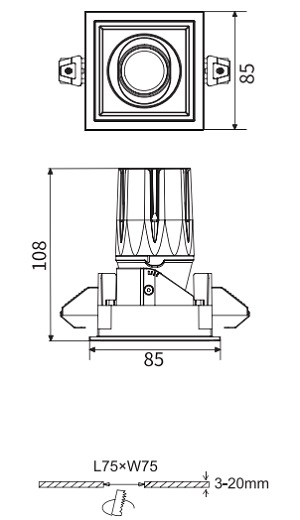

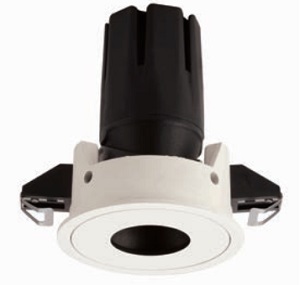

Recessed luminaire with adjustable optic for warm white LED 2700K with high colour rendering index. Passive cooling system. Adjustable body can be rotated within the recess to ensure precise but comfortable lighting and considerably reduced direct glare. 355° internal rotation and max 30° oscillation with continuous friction. Fixed recess structure in die-cast aluminium with perimeter stop frame. The recessed luminaire includes a radiant aluminium element.
