Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function. Ceiling-, wall- or surface-mounted. Consists of a body and supports for installation, to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. IP66, IK06.

The Sencia range of control plates provide a combination of contemporary design with intuitive user control. They feature an array of button configurations in single or dual column. Each slim line button is LED backlit and can show a range of text and icon options to tailor each panel to a project specific requirement. A choice of coloured button inserts can be added to any button to change the illuminated colour to complete the look. Sencia control panels are available in a variety of plate finishes to complement even the most ambitious interior designs. Panels can be installed in either standard single gang UK style electrical wall boxes or European round boxes* and can be installed in almost any location in the building on the iLight control system low voltage network.

The module realizes the opening and closing control ofsixcircuits by controlling six20A single pole single throw (SPST) relays, and various logic timing control can berealized through configuration. The module has an internal temperature sensor to monitor the operating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipmentthrough RS485 bus.

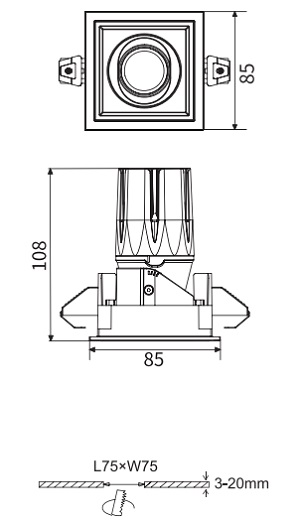

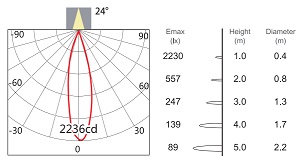

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 179 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.1 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 2 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 x 44 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
