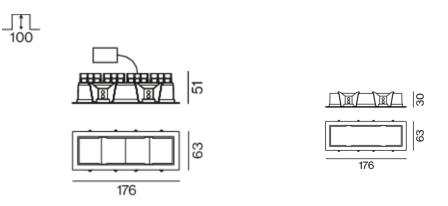

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling

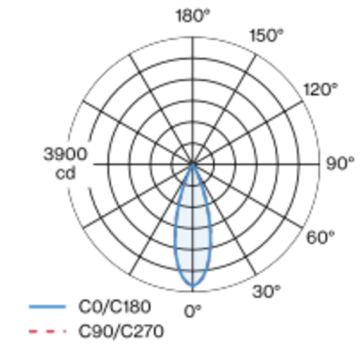

thickness of 2-25 mm; equipped with four medium round light elements; symmetrical light distribution with
precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised
surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance
above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000
K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non
dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed
separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Honeycomb accessory and IP44 available upon request.

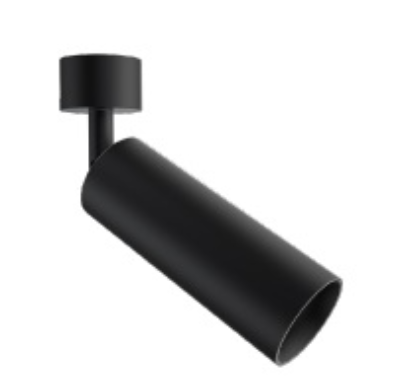

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control
gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.
Diam. 45 mm micro-projector for external use, ideal to light bushes, flowerbed and gardens in general. Body made in turned and anodized aluminum. In horizontal axis it can be oriented up to 30° down and up to 90° up. Remote 24V DC driver needed, with 1 x CREE “XPG2” LED. IP66 rating.
To-be-fixed supports and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Toughened glass diffusor 15 mm thick for CONTINUOUS LINE FULL-GLASS. Extruded polycarbonate diffuser 3mm thick for CONTINUOUS LINE POLYCARBONATE. Luminaire hard wired with single neoprene cable with cable gland. Fixing bases and recessing box included. Fast connector IP67 included.
