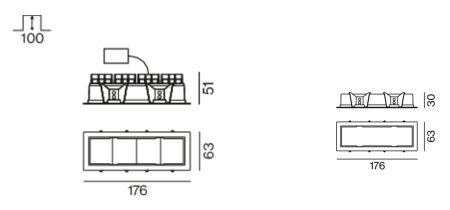

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling

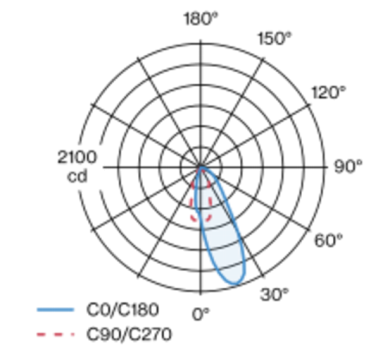

thickness of 2-25 mm; equipped with four wallwasher floor light elements; asymmetrical light distribution with
precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome
reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial
MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high
power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable;
through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately;
light source not replaceable; control gear replaceable by an authorized professional; clank-free
LED light source included. Integrated 220-240V ON/OFF and 1-10V or DALI dimmable electrical power. Equipped with double cable gland for electrical connection.
Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System 15W;measurement Ø83mm x 90mm; ceiling cutout of Ø75mm with a narrow mounting trim; ceiling thickness 1-20mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 1100lm;high color rendering at an index of CRI90.
LED lumnaire 2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting. The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT High efficient LED package achieving up to 185 lm/W.
