XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L651F0021 090-7L60100

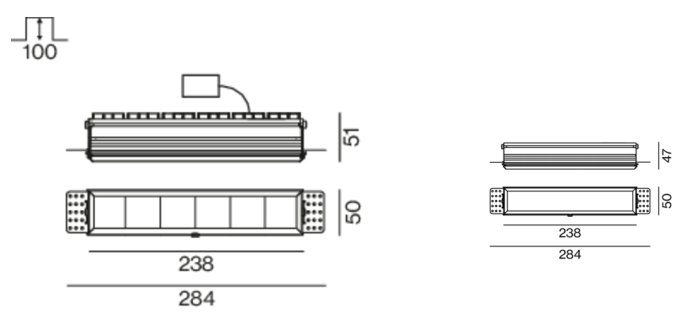

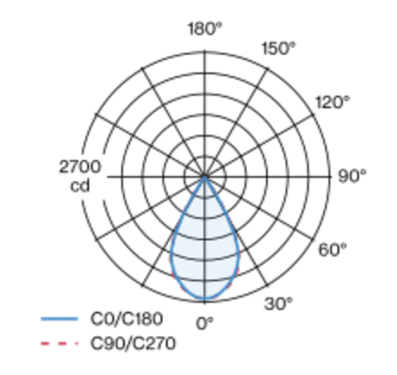

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
Power 19.8W
Color Temperature 3000K
Light Source Type LED
Lumen Output 2010LM
Finishing CHROME
IP Rating IP20
Color Rendering CRI >90
Driver ON/OFF DRIVER
See More
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs.

BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
Moto Rino is intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle, and dim level settings previously recorded via the CASAMBI™ control app. Available in standard and backlight versions, trim and trimless. In the Backlight version, the spotlight and backlight can be controlled independently, so an ambient effect can be easily created. Two DC motors drive the movements of the fixture, which is tiltable vertically up to 30° and horizontally 330° Pan. The color temperature avaiable 2700k,3000k,3500k and 4000k.
