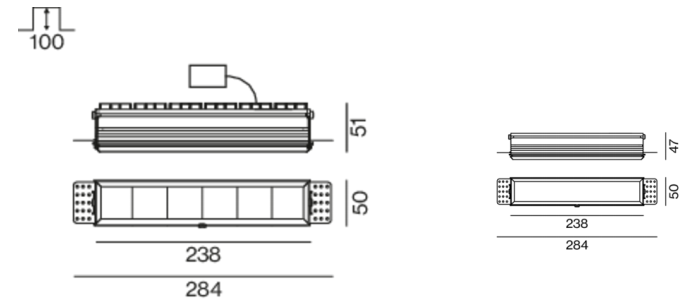

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings;
suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wide flood square light elements;

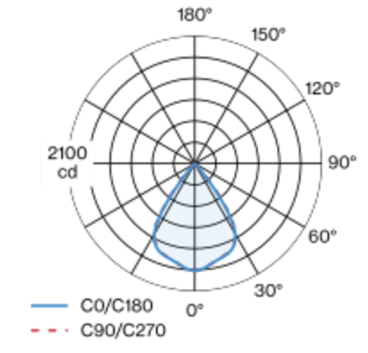

symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with
micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved
heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux
after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of
protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available
as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an
authorized professional; clank-free;
Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK10.

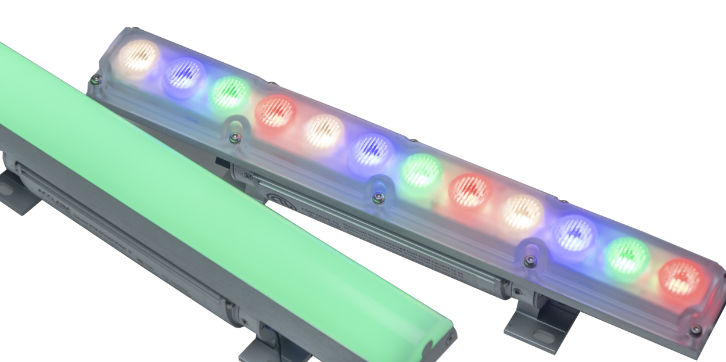

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where long-distance runs are desired.
Short cuttable unit suitable for furniture lighting, providing convenience for unpredicable on site requirements (30mm in LFP15, 40mm in LFP20). 2 types of wattage (15.4W, 10.5W per meter Customized length available up to 5m per roll.

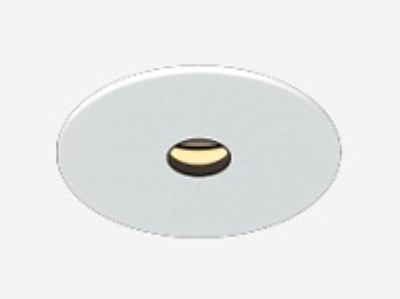

A series of minuscule pinhole downlight designed with extremely small aperture yet maintaining high light output ratio. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with various choices to provide optimal illumination for all kinds of spaces.
