Introducing new pinhole variants to the popular MINI50 series, designed to meet your specific design needs.

IP66. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features anodised aluminium core. 5CE superior corrosion protection including PCS hardware. Polycarbonate main lens, UV-stabilised. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. For 2200 K version available on request.

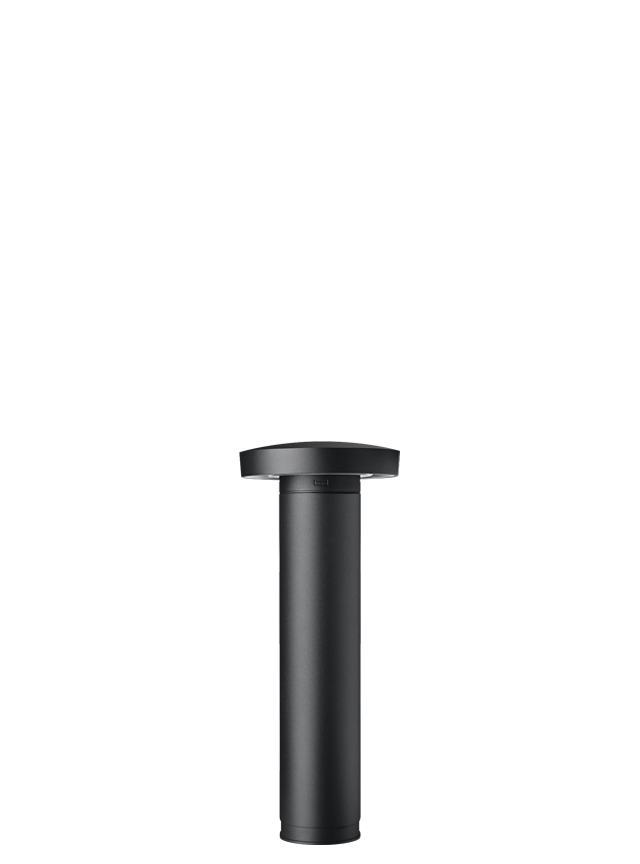

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

ULTIMA was designed with miniaturisation, integration and sustainability in mind. It is based on two master technologies: CSP LEDs and NanoRay optics. The result is an extremely small luminaire that offers the same optical options as much larger systems without compromising on light quality, as illustrated by an UGR <13 and a high colour consistency over angle.
