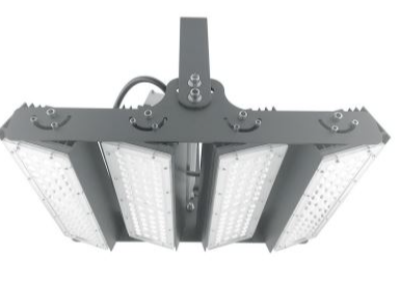

Adjustable LED projector with four (4) heads, a yoke allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Each head have a pivot point that also allow 90° tilting relative to the horizontal plane. Mechanical aiming locks for both for rotation about the vertical axis and tilting relative to the horizontal plane. 12 pieces matching adapter / clamp for mounting on a pipe about 5 cm in diameter pro lamp and mounting bracket.

DIMENSION : L278*W401*H230MM

TRIMLESS Wall Light

DIMENSION : H200*W100*DEPTH 45MM

CUT-OUT : 170*40*45

Inner : 130*30MM

Single emission downlights for indoor application. The natural white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.

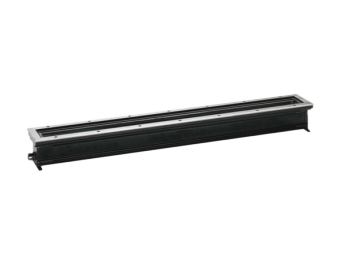

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, stainless steel cover frame and closure with stainless steel screws, cable gland: M20 (stainless steel), connecting terminal: 3 pole, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 10° / 99°, luminous flux: 1256 lm, wattage: 26 W, delivered lumens 48 lm/W, protection type IP67, protection class I, impact resistance IK09, dimensions (L×H×W): 635 × 99 × 122 mm, weight 7.7 kg The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
