LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
90647W30

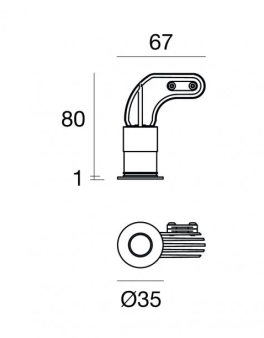

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions
Specification
Power 4W
Color Temperature 3000K
Light Source Type LED
Lumen Output 130LM
Finishing WHITE
IP Rating IP44
Color Rendering CRI 90
Driver ON/OFF DRIVER
See More
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


SIMES
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING
Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. AISI 301 Stainless-steel end caps for the extruded parts. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
HUNZA
SPOTLIGHT
OUTDOOR LIGHTING

Outdoor tree strap spotlight made of high corrosion resistant aluminium housing, solid aluminium rod end cap with with chromate substrate and high UV resistant polyester powder coated. The ingress protection degree is IP66.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable type downlight, aluminium housing, different types of beam angle.
