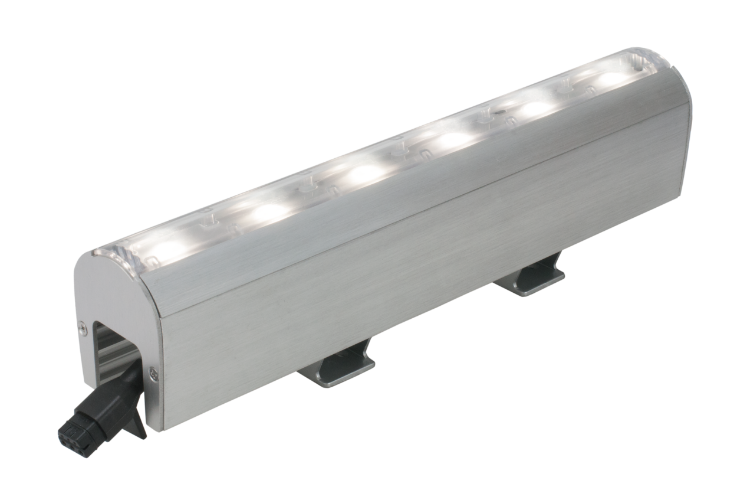

Part of the extensive Linear One® family, these attractive aluminum-bodied, natatorium-ready (IP66) linear fixtures are available in 1’ and 4’ lengths and are easily interconnected in series to simplify installation. Flexibility is key, with a wide choice of configuration combinations, including: multiple emitter types, a full range of TIR optics, plus glare shields and louvers. All of which are fulfilled through our Acclaim Modular system in Los Angeles to ensure industry-leading delivery times. Smooth single-channel dimming is delivered under 0-10V control. The internal auto-sensing power supply within each unit can accept mains inputs between 100 to 277VAC at 50 or 60Hz.

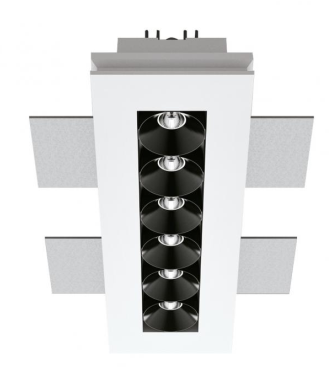

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1074 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Ø75 The fixture head is fixed. Ø90 The fixture head is 30 degree adjustable and 360 degree rotatable.The adjustable downlight luminaire body made of alluminium and reflector is plastic. Powder coated anti-glare ring is black on all variants. Ingress protection IP20. DIMENSION: Width x Height x Length (mm) | 75 x 78 x 75 Max 0.4 kg | 90 x 83 x 90 Max 1.9 kg.

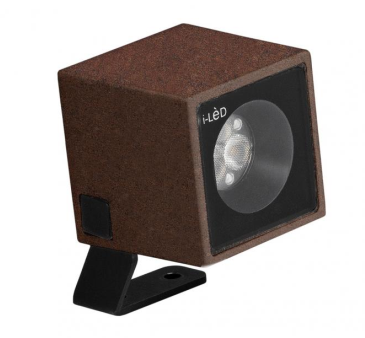

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 659 lm, with a 109.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
