Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.

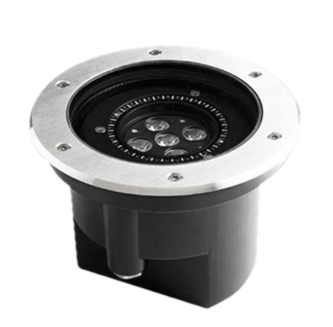

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 10°, luminous flux: 376 lm, wattage: 5 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Luminaire made of aluminium alloy, aluminium and stainless steel. Safety glass, antireflection-coated. Silicone gasket. Reflector made of pure anodised aluminium. Toolless closure. For pole top 76 mm. Inner diameter of the pole min.62 max.70 mm. Slip fitter insert depth 90 mm. Connecting cable X05BQ-F 4 1 Cable length 8 m LED power supply unit 220-240 V x 050-60 Hz DC 176-264 V Dimmable 1-10 V A basic isolation exists between power cable and control line. Luminaire Protection class IP 66. Dust-tight and protection against strong water jets. Safety class II 2. Impact strength IK08 Protection against mechanical impacts 5 joule, r Safety mark, c Conformity mark. Wind catching area 0.03 m.

Projector Light round made of aluminium; external 24VDC LED Driver is required; Compatible with On-Off.  System Power 12W; dimensions Ø84mm x 117mm; luminaire's weight is approximately 1150g; CCT 2700K with an System Output of 850lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 24° beam angle; UGR<19; degree of housing protection IP67; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician; including installation stake
