Double light emission outdoor wall-mounted luminaire, designed to use warm white LED lamps, with Up/Down light blade optic. For wall-mounting using the special steel plate. The luminaire consists of an optical assembly, rear base and plate for fixing to the wall. The optical assembly and rear base are made of die-cast aluminium alloy coated with liquid acrylic paint (grey finish) or textured liquid (white finish) with a high level of resistance to weather and UV rays. The wall plate is made of Aisi 304 stainless steel. Double light blade optic with two-component (acrylic and polycarbonate) lenses, joined to the optical assembly with silicone. Single stainless steel M14x1 cable gland and rubber outlet cable L=500mm. Double electronic circuit with warm white LED. Equipped with electronic ballast Vin 100-240V ac 50/60Hz. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN60598-1 standards and particular requirements.

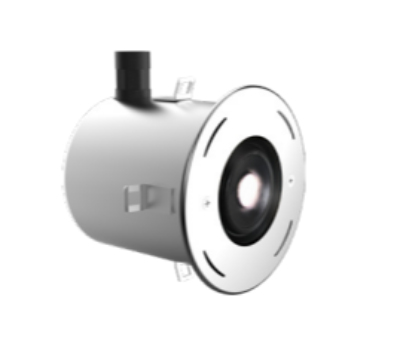

The trimless inground series, specifically designed for applications such as airports, high-end hotels, and clubs boasts excellent heat dissipation and an innovative IP68-rated waterproof structure. It offers a verity of beam angles and anti-glare accessories, including honeycomb, bullsey, or deep-set louvers, catering to a wide rage of applications requiring flush integration with the ground. The ingress protection degree is IP67, IK07.

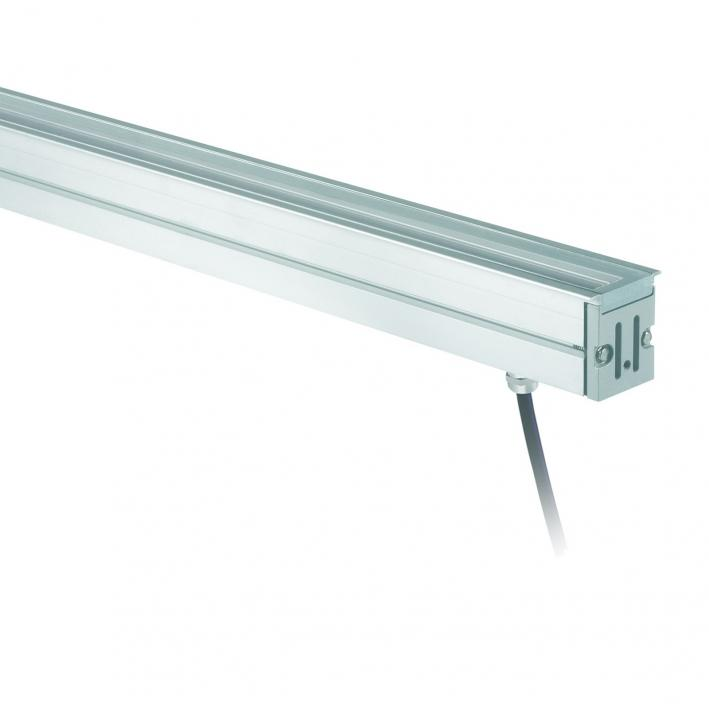

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99761 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
