EX-IL1 ILUMINATOR LIGHTBOX CUSTOMIZED

Recessed downlights luminaire body made of aluminium heat-dissipating, carbon-fibre-reinforced semi crystalline techno polymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 430 stainless steel, laser cut, machined and finished. IP66.IK08.

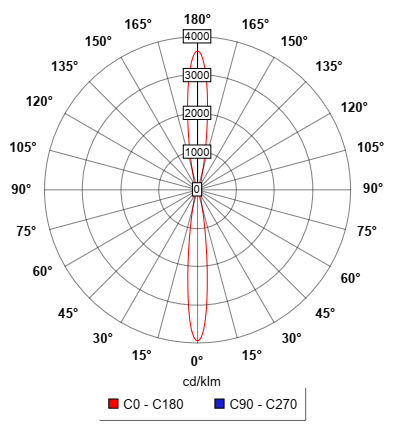

Single emission lines for outdoor application. The super warm white LED light source with a narrow spot light distribution is composed of 9 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2538 lm, with a 128.2 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The total absorbed power is 22 W. The power supply cable is included and features a 0.2 m length.

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
