LED LINEAR
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING
VARIOLED OCEANOS HYD HD10 W932/1020-OP IP67

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Specification
Power 10W/M
Color Temperature 3200K
Light Source Type LED
Lumen Output 190LM/M
Finishing WHITE
IP Rating IP67
Color Rendering CRI 95
Driver ON/OFF DRIVER
See More

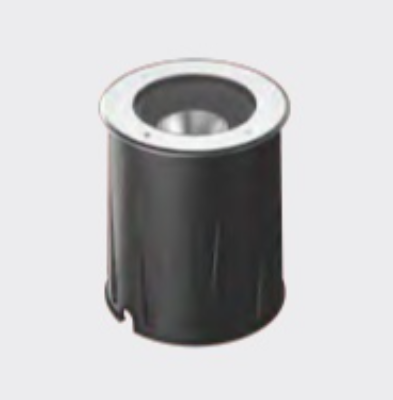

SPARK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Innovative design, no need to disassemble the product 15° free adjustment from the cover, improve the lighting design effect, with the safety self-locking function, more stable dimming. The ingress protection degree is IP67, IK10.

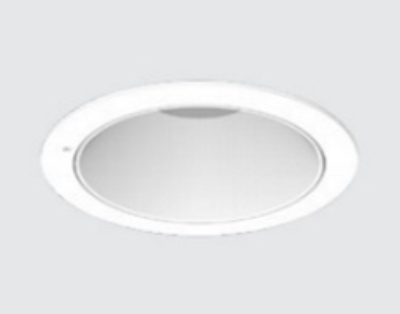

LIGHTFORMS
RECESSED DOWNLIGHT
INDOOR LIGHTING
This ceiling recessed downlight has high lumen output capability. Available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.

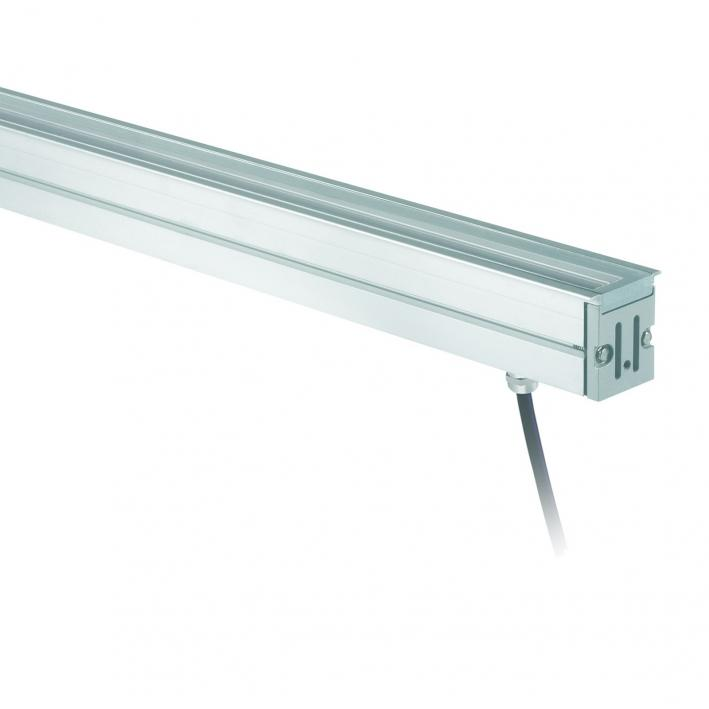

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

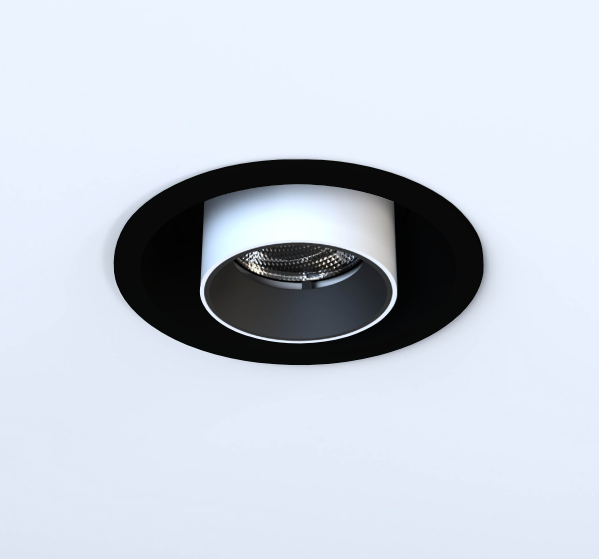

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre
